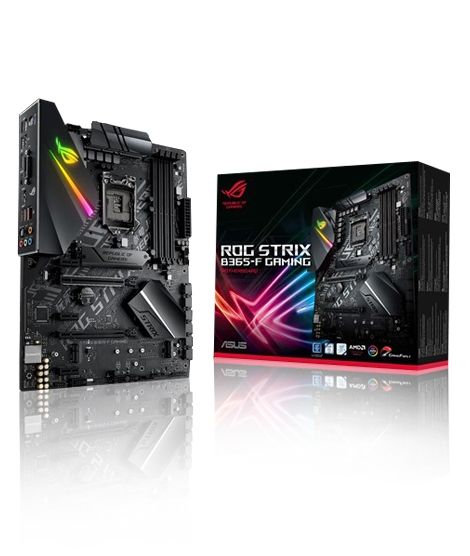

Asus ROG STRIX B365-F ATX Gaming Motherboard

SKU : ED-0610-MP

Rs. 26,444

Delivery & Return

Ask a Question?

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for Asus ROG STRIX B365-F ATX Gaming Motherboard with express shipping all over Pakistan.

Intel LGA-1151 B365 ATX gaming motherboard with Aura Sync RGB, pre-mounted I/O shield, dual M.2, DisplayPort, HDMI, DVI, SATA 6 Gbps and USB 3.1 Gen 2

• LGA1151 socket: Ready for 9th/8th Gen Intel® Core™ desktop processors.

• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.

• Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.

• On-board M.2 heatsink: Cools M.2 drive to deliver consistent storage performance and enhanced reliability.

• Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.

• Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.

• Gaming connectivity: Dual M.2, USB 3.1 Gen 2 Type-A connectors, DisplayPort, HDMI and DVI.

• Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer and lag-free online play.

Specifications:

CPU	Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
	Supports Intel® 14 nm CPU
	* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® B365
Memory	4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports Intel® Extreme Memory Profile (XMP)
Graphic	Integrated Graphics Processor- Intel® HD Graphics support
	Multi-VGA output support : HDMI/DVI/DisplayPort ports
	- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
	- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
	- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
Multi-GPU Support	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	1 x PCIe 3.0/2.0 x16 (x16 mode)
	1 x PCIe 3.0/2.0 x16 (x4 mode) *2
	3 x PCIe 3.0/2.0 x1 *3
Storage	Intel® B365 Chipset :
	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*4
	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
	6 x SATA 6Gb/s port(s)
	Intel® Rapid Storage Technology supports
	Intel® Optane™ Memory Ready
LAN	Intel® I219V, 1 x Gigabit LAN Controller(s)
	Anti-surge LANGuard
	ROG GameFirst Technology
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
	- Dual Headphone Amplifiers
	- Impedance sense for front and rear headphone outputs
	- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
	- SupremeFX Shielding Technology
	- Supports up to 32-Bit/192kHz playback *6
	Audio Feature :
	- Optical S/PDIF out port(s) at back panel
	- Sonic Radar III
	- Sonic Studio III + Sonic Studio Link
USB Ports	Intel® B365 Chipset :
	2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
	Intel® B365 Chipset :
	4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 1 x Type-A+1 x Type-C)
	Intel® B365 Chipset :
	8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
ROG Exclusive Features	ROG CPU-Z
	Pre-mounted I/O Shield
	Overwolf
	ROG Aura
	- Aura Lighting Control
	- Aura RGB Strip Headers
	ROG Exclusive Software
	- RAMCache III
	- GameFirst V
Special Features	Fan Xpert4
	- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
	Gamer's Guardian:
	- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
	- DRAM Overcurrent Protection
	- Stainless Steel Back I/O
	- Highly Durable Components
	- SafeSlot
	AURA :
	- Aura Lighting Control
	- Aura RGB Strip Headers
	- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
	ASUS Exclusive Features :
	- AI Suite 3
	- Armoury Crate
	ASUS EZ DIY :
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	ASUS Q-Design :
	- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
	- ASUS Q-Slot
	- ASUS Q-DIMM
	Gaming Aesthetics :
	- 3D printing friendly
	- AURA-RGB Lighting
	Digi+VRM
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s)
	1 x DVI-D
	1 x DisplayPort
	1 x HDMI
	1 x LAN (RJ45) port(s)
	2 x USB 3.1 Gen 2 (red)Type-A,
	2 x USB 3.1 Gen 1 (black) Type-A + USB Type-CTM
	4 x USB 2.0
	1 x Optical S/PDIF out
	5 x Audio jack(s)
Internal I/O Ports	1 x AAFP connector
	1 x Aura RGB Strip Header(s)
	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
	1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
	1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
	1 x M.2 with E key for Wi-Fi module
	6 x SATA 6Gb/s connector(s)
	1 x M.2_FAN connector
	1 x CPU Fan connector(s)
	1 x CPU OPT Fan connector(s)
	2 x Chassis Fan connector(s)
	1 x AIO_PUMP connector
	1 x 24-pin EATX Power connector(s)
	1 x 8-pin ATX 12V Power connector(s)
	1 x System panel(s)
	1 x 5-pin EXT_FAN(Extension Fan) connector
	1 x Thermal sensor connector(s)
	1 x Clear CMOS jumper(s)
	1 x 14-1 pin TPM connector
	1 x COM port header
Accessories	User's manual
	4 x SATA 6Gb/s cable(s)
	1 x M.2 Screw Package
	1 x Supporting DVD
	1 x Strix door hanger
	1 x CABLE TIE BLACK
	1 x ROG Strix stickers
	1 x Extension Cable for RGB strips (80 cm)
BIOS	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1,
BIOS	ACPI 6.1
Manageability	WOL,PXE
Operating System	Windows® 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note	*1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays.
	*2 The PCIEX16_2 slot shares bandwidth with PCIEX1_1 and PCIEX1_2 slots. When PCIEX1_1 and PCIEX1_2 slots are occupied, PCIEX16_2 slot runs at x2 mode.
	*3 The M.2_1 socket shares bandwidth with PCIEX1_4
	*4 The M.2_1 socket shares bandwidth with SATA6G_2 port when using M.2 SATA mode device. Adjust BIOS settings to use X2 mode (PCIE only). The M.2_1 socket shares bandwidth with PCIEX1_4
	*5 The M.2_2 socket supports Intel® Optane™ Technology. Intel® Optane™ Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane™ memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
