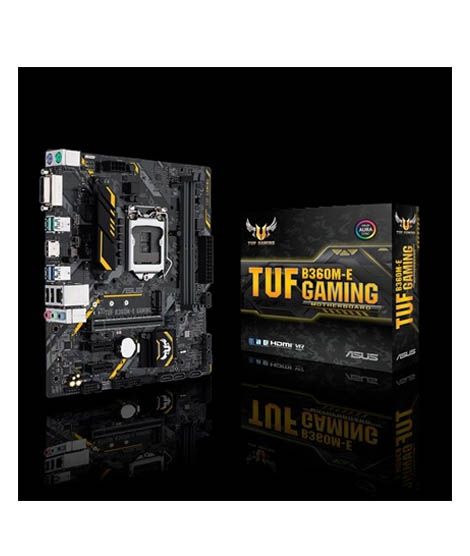

Asus TUF B360M-E Gaming 8th Generation mATX Motherboard

SKU : ED-0227-MP

Rs. 16,205

Delivery & Return

Ask a Question?

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for Asus TUF B360M-E GAMING 8th Generation mATX Motherboard with express shipping all over Pakistan.

Features:

• TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability

• Fan Xpert: Flexible cooling controls

• Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability

• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

• Intel® Optane™ memory ready: Exploit the latest high-speed storage technology

• Native M.2: Lightning-fast storage speeds

Specifications:

CPU	Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
	Supports Intel® 14 nm CPU
	Supports Intel® Turbo Boost Technology 2.0
	* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
	* Refer to www.asus.com for CPU support list
Chipset	Intel® B360
Memory	Intel® B360 Chipset
	2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
	* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
	* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
	** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Graphic	Integrated Graphics Processor
	Multi-VGA output support : HDMI/DVI-D ports
	- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
	- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
	Maximum shared memory of 1024 MB (for iGPU exclusively)
	Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots	Intel® B360 Chipset
	1 x PCIe 3.0/2.0 x16 (x16 mode)
	2 x PCIe 3.0/2.0 x1
Storage	Intel® B360 Chipset :
	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
	6 x SATA 6Gb/s port(s),
	Intel® Optane™ Memory Ready
LAN	Intel® I219V, 1 x Gigabit LAN Controller(s)
LAN	TUF LANGuard
Audio	Realtek® ALC887 7.1-Channel High Definition Audio CODEC *2
	Audio Feature :
	- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
	- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
	- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports	Intel® B360 Chipset :
	2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)
	Intel® B360 Chipset :
	4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
	Intel® B360 Chipset :
	6 x USB 2.0/1.1 port(s) (2 at back panel, black, Type-A, 4 at mid-board)
Special Features	ASUS TUF PROTECTION
	- ASUS SafeSlot: Protect your graphics card Investment
	- ASUS ESD Guard: Enhanced ESD protection
	- ASUS Overvoltage Protection: World-class circuit-protecting power design
	- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
	- ASUS DIGI+ VRM: 5 Phase digital power design
	ASUS OptiMem：
	- Optimem (Improved DDR4 stability)
	ASUS EPU :
	- EPU
	ASUS Exclusive Features :
	- AI Suite 3
	- Ai Charger
	- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
	- EZ XMP ASUS Exclusive Features
	- PC Cleaner
	- File Transfer
	ASUS Quiet Thermal Solution :
	- ASUS Fan Xpert
	ASUS EZ DIY :
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS MyLogo 2
	- ASUS UEFI BIOS EZ Mode
	ASUS Q-Design :
	- ASUS Q-Slot
	- ASUS Q-DIMM
	AURA: RGB Lighting Control
	M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
	Operating System Support
	Windows® 10 64-bit
Back I/O Ports	1 x PS/2 keyboard (purple)
	1 x PS/2 mouse (green)
	1 x DVI-D
	1 x HDMI
	1 x LAN (RJ45) port(s)
	2 x USB 3.1 Gen 2 (teal blue)
	2 x USB 3.1 Gen 1 (blue) ,
	2 x USB 2.0
	3 x Audio jack(s)
Internal I/O Ports	1 x RGB Header(s)
	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
	1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
	1 x COM port(s) connector(s)
	6 x SATA 6Gb/s connector(s)
	1 x CPU Fan connector(s) (1 x 4 -pin)
	1 x Chassis Fan connector(s) (1 x 4 -pin)
	1 x S/PDIF out header(s)
	1 x 24-pin EATX Power connector(s)
	1 x 8-pin EATX 12V Power connectors
	1 x Front panel audio connector(s) (AAFP)
	1 x System panel(s)
	1 x Clear CMOS jumper(s)
	1 x Speaker connector
Accessories	User's manual
	I/O Shield
	2 x SATA 6Gb/s cable(s)
	1 x M.2 Screw Package
	1 x Supporting DVD
	1 x TUF Gaming Sticker
	1 x TUF Certification card(s)
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search
Manageability	WOL by PME, PXE
Support Disc	Drivers
	ASUS Utilities
	EZ Update
	Anti-virus software (OEM version)
Form Factor	mATX Form Factor
Form Factor	8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm )
Note	*1.When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
Note	*2. Use a chassis with HD audio module in the front panel to support a 8-channel audio output.
