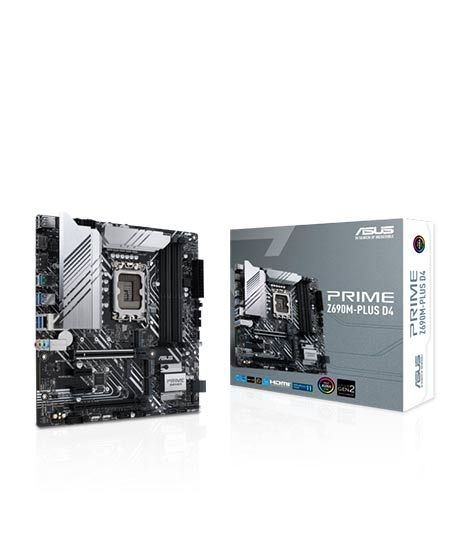

Asus Prime Z690M-Plus D4 Micro ATX Motherboard

SKU : ED-1398-MP

Rs. 65,455

Delivery & Return

Ask a Question?

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

Asus mATX Motherboard Delivered All Over Pakistan

iShopping.pk brings you the best price for Asus Prime Z690M-Plus D4 Micro ATX Motherboard with express shipping all over Pakistan.

Specifications:

Dimensions & Weight / Depth	24.4 cm
Dimensions & Weight / Width	24.4 cm
Header / Brand	ASUS
Mainboard / Chipset Type	Intel Z690
Mainboard / Processor Socket	LGA1700 Socket
Networking / Data Link Protocol	Ethernet
	Fast Ethernet
	Gigabit Ethernet
Video Output / Type	Graphics adapter (CPU required)
Audio
Compliant Standards	High Definition Audio
Type	HD Audio (8-channel)
Expansion / Connectivity
Expansion Slots	1 x CPU
	4 x DIMM 288-pin
	1 x PCIe 5.0 x16
	1 x PCIe 4.0 x16 (x4 mode)
	2 x PCIe 3.0 x1
	1 x M.2 socket (for Intel CNVi wireless module)

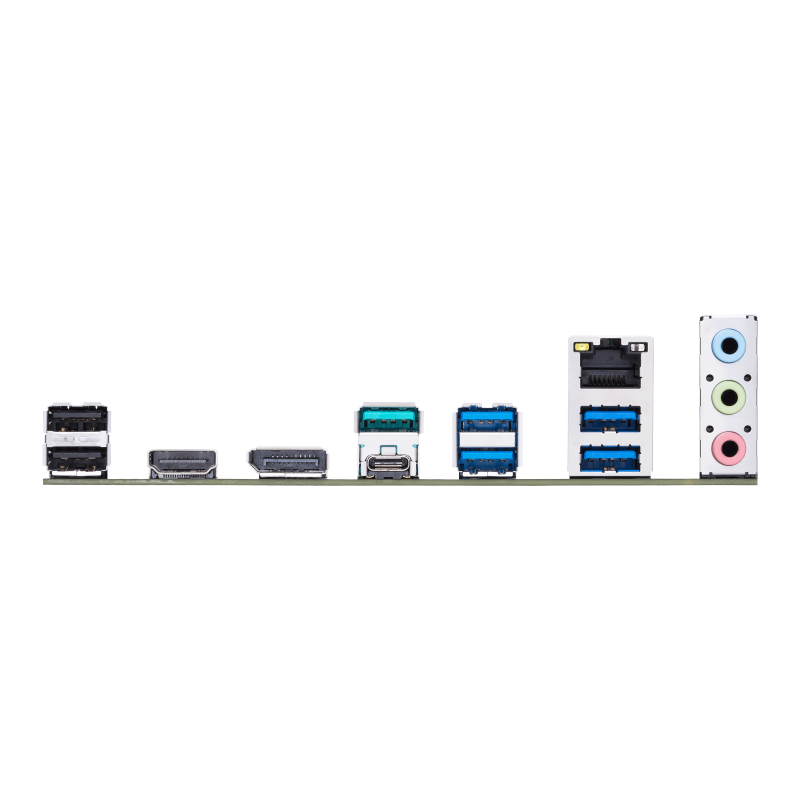

Interfaces	1 x audio line-in - mini-jack
	1 x audio line-out - mini-jack
	1 x microphone - mini-jack
	1 x DisplayPort
	1 x HDMI
	1 x LAN (Gigabit Ethernet)
	1 x USB-C Gen2x2
	1 x USB 3.2 Gen 2
	4 x USB 3.2 Gen 1
	2 x USB 2.0
Internal Interfaces	4 x USB 2.0 - header
	1 x USB-C Gen 1 - header
	2 x USB 3.2 Gen 1 - header
	1 x audio - header
	1 x SPI - header
	1 x serial - header
	1 x SPDIF out - header
	1 x Thunderbolt - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
RAID Features	Intel Rapid Storage Technology
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
	PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5
	SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
Features
BIOS Features	UEFI BIOS, ASUS EZ Flash 3
BIOS Type	AMI
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
General
Chipset Type	Intel Z690
Compatible Processors	(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty	1
Processor Socket	LGA1700 Socket
Product Type	Motherboard - micro ATX
LAN
Network Interfaces	Gigabit Ethernet
Miscellaneous
Cables Included	2 x Serial ATA cable
Depth	24.4 cm

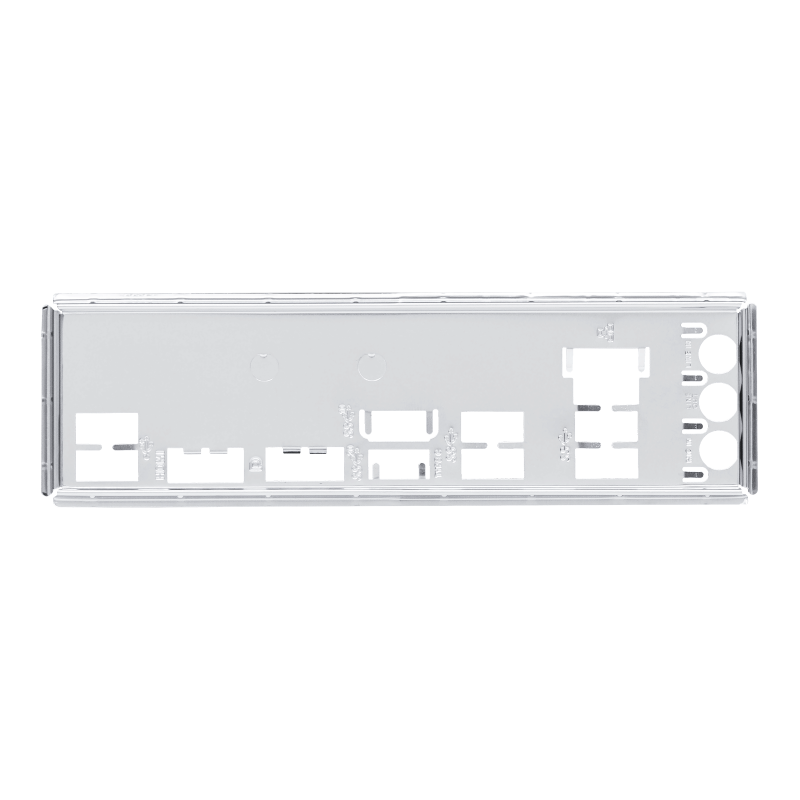

Included Accessories	I/O back plate, 2 x M.2 screws
Software Included	Drivers & utilities, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Flash 3, WinRAR, Norton AntiVirus (Trial)
Width	24.4 cm
Supported RAM
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size	128 GB
Registered or Buffered	Unbuffered
Supported RAM Integrity Check	Non-ECC
Technology	DDR4

Intel LGA 1700 socket
Ready for 12th Gen Intel Core processors, support PCIe 5.0 and DDR4 and out of box Windows 11 ready

Enhanced Power Solution
10+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery

Comprehensive Cooling
Large VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4

Next Gen Connectivity
PCIe 5.0, Intel 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 1 Type-C connector, Thunderbolt 4 headersupport

Boosted Memory Performance
ASUS OptiMem II proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance

PC DIY Friendly
PCIe 5.0 Safeslot, Q-LED Code
All ASUS Z690 Motherboards designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets
